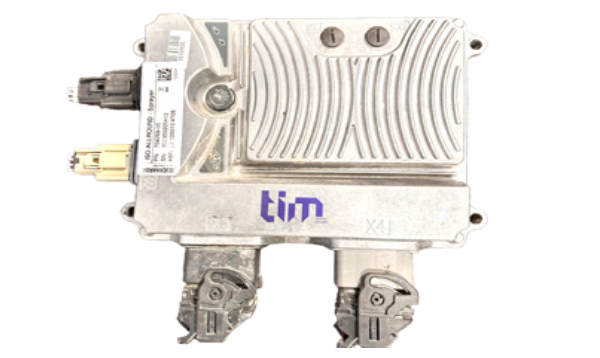

ISOBUS spraying ECUs simplifies the operation for the user by enabling the control of any brand /model sprayers from an ISOBUS compatible screen (ISOBUS VT) in the tractor cabin and ensuring that the spraying process is carried out most sensitively without the need for another screen.
Download our CatalogCompatible with all brands and models of VT displays in the market, required ISOBUS software licenses to be purchased for these displays. Different cables are available for different VT display models as a related product.
Spraying ISOBUS ECU system is compatible and applicable to all brands/models of spraying machines.
Sustaining desired application rate (It/ha) at all tractor speeds by using flowrate, pressure and speed sensors.
Spraying stops below the minimum set pressure, and speed and avoids overlapping.
USpray mapping can be uploaded
Application rate, Speed, Pressure, Flow rate, Sprayed quantity, Tank level, Area covered, Spraying duration, Distance covered.
AUSB drive for data transfer and software update.
10 jobs can be saved and the same jobs can be used again.
The outputs of the operation are taken in the ISOBUS standard.

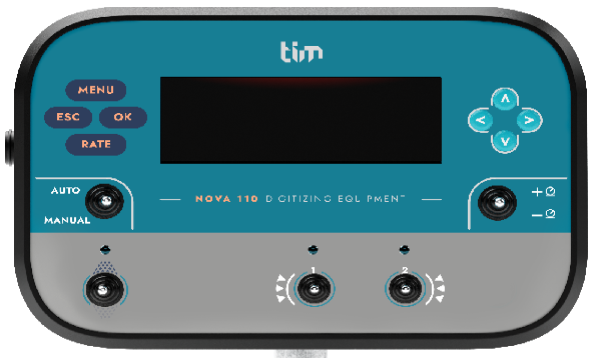

Provides the desired spray application per hectare regardless of tractor speed, and its ultrasonic sensors detect the end of the row, plant presence, and plant height.
Download our CatalogSustaining desired application rate (It/ha) at all tractor speeds by using flowrate, pressure and speed sensors.
Spray stop below minimum set pressure.
Instant monitoring of the mixture remaining in the tank during spraying.
Application rate, Speed, Pressure, Flow rate, Sprayed quantity, Tank level, Area covered, Spraying duration, Distance covered.
USB drive for data transfer and software update
ith 2-way valves (left/right) adjusting red buttons on the valves helps to constant pressure spraying operation regardless of how many valves are in operation.
Automatic control of the section valves, detecting one or more of the following conditions using ultrasonic sensors: 1-Row end, 2-Plant presence, 3-Plant height
Wi-fi capability enables remote monitoring and control through smartphones, tablets,
or computers through “tim app” and helps easy latest version software updates
Collect detailed data and store it on cloud-based “tim app” platform on every
application,
including input rates, locations, and outcomes
Help farmers complete spraying jobs efficiently by targeting the required spraying per unit area (lt/ha), reducing waste and improving efficiency.
Download our Catalog Sustaining set application rate (I/ha) at alternative application speed
Spraying stops below minimum set pressure and speed
Customized nozzle spacing parameters
Prevents pressure loss in the system on restarting spray job at row turns
Keeps data of total area covered and total spray amount starting from very first
operation
Alarm states - High speed/Low speed/Min speed/No Flow/Min Tank/No
Speed/Below min. reg. pressure/Above max. reg. pressure
In situations of lost GNSS signal Auto Section Control pauses but Rate
Control continues using wheel speed sensor
Displayed info - way line number, guidance light-bar, current heading (compass)
Complete overview of the job carried out, with zoom in/out (birds eye - worms eye
view)
Accuracy up to 2.5 cm depending on the connected GPS receiver (RTK or subscription
based)
Job Pause feature help operators pause and continue at the very same point of field
after refilling tank
Realignment function of way lines for row crops in case line shift needed
Way lines offset customization - intended overlap or gap on rows can be customized)
/
USB connection for software updates
Save fields together with points of interests such as tree trunks, cracks etc.
Recall fields from database with its way lines for future operations
Several different types of equipment & tractors can be saved to database to be used with guidance feature (Sprayers, seeders, planters, spreaders, tillage equipment etc.)
Turns off sections of the sprayer when overlapping areas or when moving off field
boundaries
Alarm activated at weak GPS signal quality

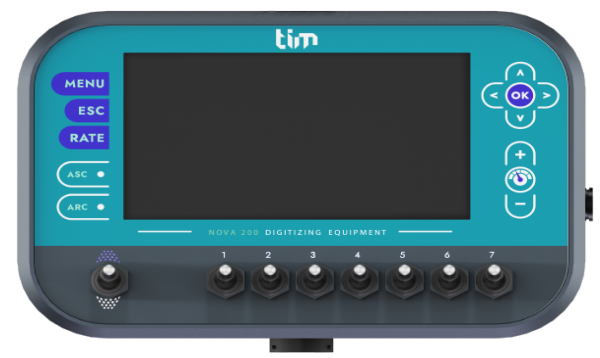

Integrated on-computer switches controlling up to 7 sections manually
Adjustable overlapping percentage limit
Adjustable opening advance & closing delay distance
Mapping capabilities, allowing for precise location tracking and mapping of field
variability.
This data is used to apply the correct input rates based on specific zones within
the field.
Application Rate, Speed, Pressure, Flow Rate, Sprayed quantity,
tank level, area covered, spraying duration, distance covered,
User configurable “Instant Menu”
In computer job completion report with relevant variable rate mapping, overlaps, total time, total area, productivity (he/h, I/h)
Wi-fi capability enables remote monitoring and control through smartphones, tablets,
or computers through “tim app” and helps easy latest version software updates
Collect detailed data and store it on cloud-based “tim app” platform on every
application,
including input rates, locations, and outcomes
Help farmers complete spraying jobs efficiently by targeting the required spraying per unit area (lt/ha), reducing waste and improving efficiency.

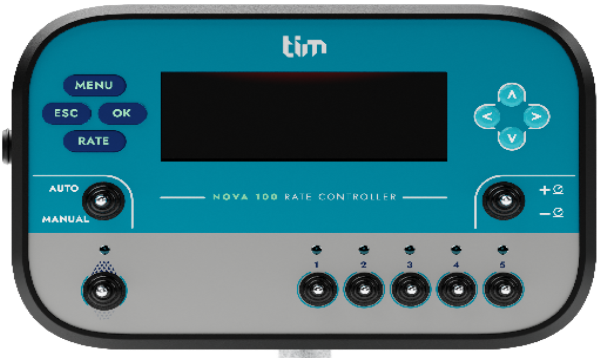

Download our CatalogSustaining required application rate (lt/ha) at all tractor speeds by using flowrate, pressure and speed sensors.
20x4 character screen for user friendly navigation.
10 jobs can be saved and the same jobs can be recalled.
Spray stop below minimum set pressure and speed.
Application Rate, Speed, Pressure, Flow Rate, Sprayed quantity, tank level, area covered, spraying duration, distance covered.
Set Min-Max operating pressure, system will keep pressure at these intervals during spray job.
Set customized nozzle spacing parameters to correctly regulate spray job for different nozzle spacing needs.
Prevents pressure loss in the system on restarting spray job at row turns.
Keeps data of total area covered and total spray amount starting from fist operation.
SD card for data transfer (Export) / USB connection for software updates.
Easy section control prevents pressure deviation in section opening/closing and safe application is ensured without spraying hose in- cab

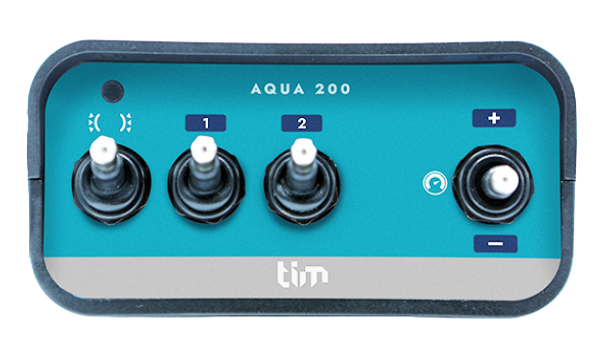

Download our CatalogControl Box allows to increase or decrease the pressure by 10%, which adjusts spraying dosage during operation.
It controls 2 section valves Open/Close, main valve Open/Close, pressure regulation.
No chemical hoses carried inside the cabin, safe & easy spraying operation control.
Easy section control prevents pressure deviation in section opening/closing and safe application is ensured without spraying hose in- cab.

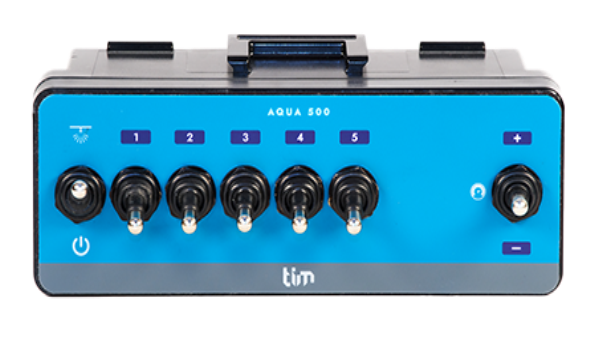

Download our CatalogControl Box allows to increase or decrease the pressure by 10%, which adjusts spraying dosage during operation.
It controls 5 section valves Open/Close, main valve Open/Close, pressure regulation.
No chemical hoses carried inside the cabin, safe & easy spraying operation control.
The hydraulic control box typically controls the flow and pressure of hydraulic fluid from the sprayer to the various hydraulic cylinders and motors, thereby adjusting the boom arm's level, direction, and angle .

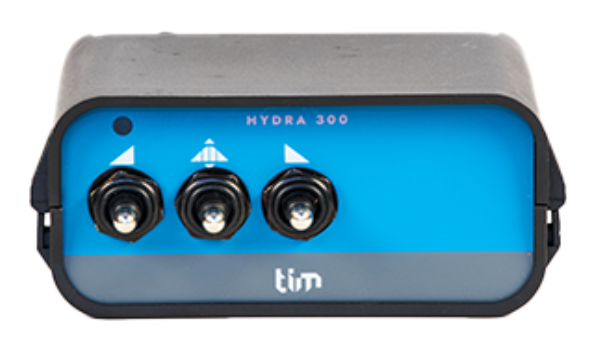

Download our CatalogThe hydraulic valves used in the system allow you to control the boom movements.
Height, and 2 boom movement.
The hydraulic control box typically controls the flow and pressure of hydraulic fluid from the sprayer to the various hydraulic cylinders and motors, thereby adjusting the boom arm's level, direction, and angle.

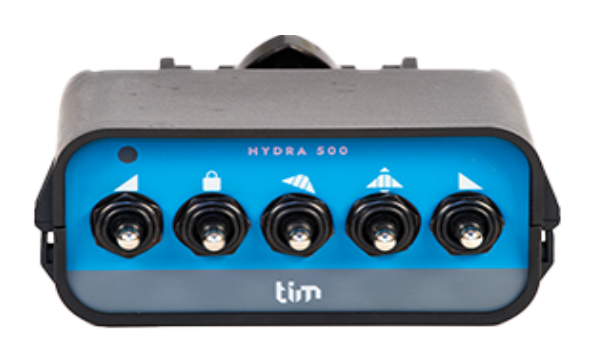

Download our CatalogThe hydraulic valves used in the system allow you to control the boom movements.
Leveling, Height, Lock and 2 boom movement
The hydraulic control box typically controls the flow and pressure of hydraulic fluid from the sprayer to the various hydraulic cylinders and motors, thereby adjusting the boom arm's level, direction, and angle.

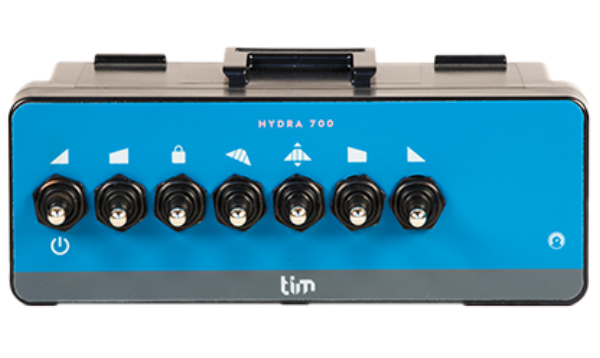

Download our CatalogThe hydraulic valves used in the system allow you to control the boom movements.
Leveling, Height, Lock and 4 boom movement.
