K400T1

CONTROL UNIT

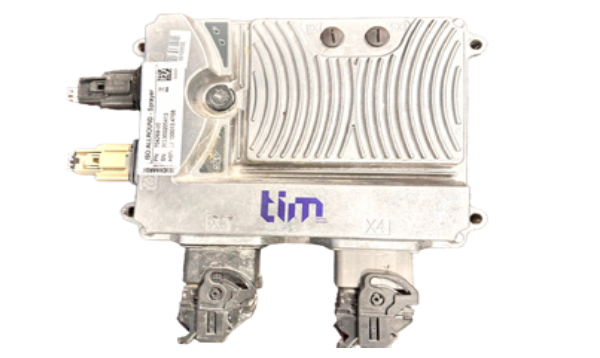

SPRAYER ISOBUS ECU KIT.

ISOBUS spraying ECUs simplifies the operation for the user by enabling the control of any brand /model sprayers from an ISOBUS compatible screen (ISOBUS VT) in the tractor cabin and ensuring that the spraying process is carried out most sensitively without the need for another screen.

Download our Catalog

Various Type ISOBUS VT Displays

Compatible with all brands and models of VT displays in the market, required ISOBUS software licenses to be purchased for these displays. Different cables are available for different VT display models as a related product.

Applicable to All Brands/Models

Spraying ISOBUS ECU system is compatible and applicable to all brands/models of spraying machines.



Rate Controller

Sustaining desired application rate (It/ha) at all tractor speeds by using flowrate, pressure and speed sensors.

Automatic Spray Shut-off

Spraying stops below the minimum set pressure, and speed and avoids overlapping.

Spray Mapping

USpray mapping can be uploaded

Information Displayed

Application rate, Speed, Pressure, Flow rate, Sprayed quantity, Tank level, Area covered, Spraying duration, Distance covered.

Data Transfer

AUSB drive for data transfer and software update.

Job Registration

10 jobs can be saved and the same jobs can be used again.

Report

The outputs of the operation are taken in the ISOBUS standard.

Standard Package Contents

Spraying ECU-ISOBUS

Spraying ECU-ISOBUS

REIC 000259
Cable Kit 1

Cable Kit 1

K400T1
Cable Kit 2

Cable Kit 2

K400T1
Cable Kit 3

Cable Kit 3

K400T1
Cable Kit 4

Cable Kit 4

K400T1

K50071

NOVA 210

ORCHARD RATE CONTROLLER COMPUTER.

Provides the desired spray application per hectare regardless of tractor speed, and its ultrasonic sensors detect the end of the row, plant presence, and plant height.

Download our Catalog

Rate Controller

Sustaining desired application rate (It/ha) at all tractor speeds by using flowrate, pressure and speed sensors.

Automatic Spray Shut-off

Spray stop below minimum set pressure.


Tank Level

Instant monitoring of the mixture remaining in the tank during spraying.

Information Displayed

Application rate, Speed, Pressure, Flow rate, Sprayed quantity, Tank level, Area covered, Spraying duration, Distance covered.

Data Transfer

USB drive for data transfer and software update

Metered by-pass Valves

ith 2-way valves (left/right) adjusting red buttons on the valves helps to constant pressure spraying operation regardless of how many valves are in operation.

Detect Function

Automatic control of the section valves, detecting one or more of the following conditions using ultrasonic sensors: 1-Row end, 2-Plant presence, 3-Plant height

Connectivity and loT

Wi-fi capability enables remote monitoring and control through smartphones, tablets, or computers through “tim app” and helps easy latest version software updates
Collect detailed data and store it on cloud-based “tim app” platform on every application, including input rates, locations, and outcomes

Standard Package Contents

Nova 210 Computer

Nova 210 Computer

K500T1YP100
GPS

GPS

KYP028
Triple Suction Cup Mount

Triple Suction Cup Mount

KYP029
Speed Sensor

Speed Sensor

KYP031
Power Cable

Power Cable

SIM014
Nova 210 6 MT Valf Kablosu

Nova 210
6 MT Valf Kablosu

SIM015
Ultrasonic Sensor 2 Units
Optional

Ultrasonic Sensor 2 Units

TA 467380000.500

K50071

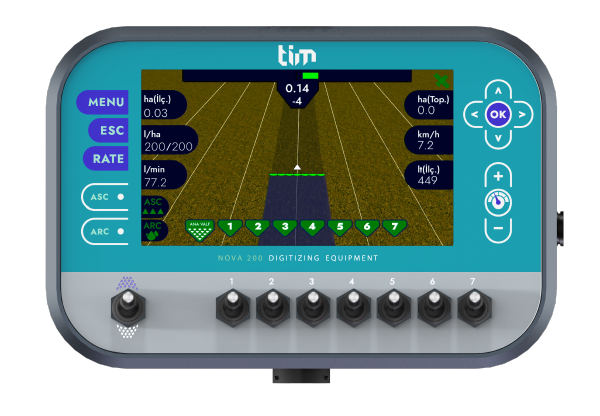

NOVA 200

RATE CONTROLLER COMPUTER.

Help farmers complete spraying jobs efficiently by targeting the required spraying per unit area (lt/ha), reducing waste and improving efficiency.

Download our Catalog

Rate Controller

Sustaining set application rate (I/ha) at alternative application speed
Spraying stops below minimum set pressure and speed
Customized nozzle spacing parameters
Prevents pressure loss in the system on restarting spray job at row turns
Keeps data of total area covered and total spray amount starting from very first operation
Alarm states - High speed/Low speed/Min speed/No Flow/Min Tank/No
Speed/Below min. reg. pressure/Above max. reg. pressure
In situations of lost GNSS signal Auto Section Control pauses but Rate
Control continues using wheel speed sensor

Guidance with On-screen Lightbar

Displayed info - way line number, guidance light-bar, current heading (compass)
Complete overview of the job carried out, with zoom in/out (birds eye - worms eye view)
Accuracy up to 2.5 cm depending on the connected GPS receiver (RTK or subscription based)
Job Pause feature help operators pause and continue at the very same point of field after refilling tank
Realignment function of way lines for row crops in case line shift needed
Way lines offset customization - intended overlap or gap on rows can be customized) /
USB connection for software updates


Field Database

Save fields together with points of interests such as tree trunks, cracks etc.
Recall fields from database with its way lines for future operations

Equipment/Tractor Database

Several different types of equipment & tractors can be saved to database to be used with guidance feature (Sprayers, seeders, planters, spreaders, tillage equipment etc.)

Auto Section Control

Turns off sections of the sprayer when overlapping areas or when moving off field boundaries
Alarm activated at weak GPS signal quality
Integrated on-computer switches controlling up to 7 sections manually
Adjustable overlapping percentage limit
Adjustable opening advance & closing delay distance

Variable Rate Control

Mapping capabilities, allowing for precise location tracking and mapping of field variability.
This data is used to apply the correct input rates based on specific zones within the field.



Displayed Info

Application Rate, Speed, Pressure, Flow Rate, Sprayed quantity, tank level, area covered, spraying duration, distance covered,
User configurable “Instant Menu”

Job Report

In computer job completion report with relevant variable rate mapping, overlaps, total time, total area, productivity (he/h, I/h)


Connectivity and loT

Wi-fi capability enables remote monitoring and control through smartphones, tablets, or computers through “tim app” and helps easy latest version software updates
Collect detailed data and store it on cloud-based “tim app” platform on every application, including input rates, locations, and outcomes

Standard Package Contents

Nova 200 Computer

Nova 200 Computer

K500T1YP100
GPS

GPS

KYP033
Triple Suction Cup Mount

Triple Suction Cup Mount

KYP029
Speed Sensor

Speed Sensor

KYP031
Power Cable

Power Cable

SIM014
Nova 200 6 MT Valve Cable

Nova 200
6 MT Valve Cable

SIM100
Nova 200 11 MT Valve Cable
Optional

Nova 200
11 MT Valve Cable

SIM101

K200T1

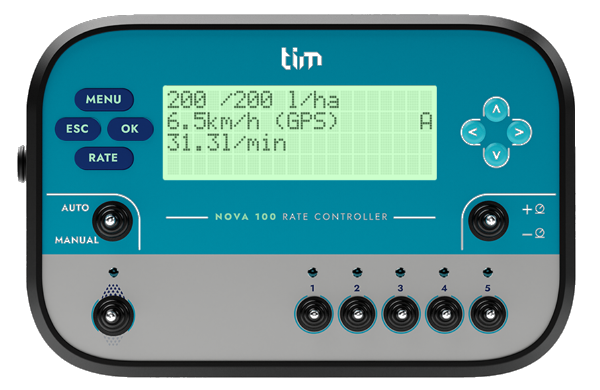

NOVA 100

RATE CONTROLLER COMPUTER.

Help farmers complete spraying jobs efficiently by targeting the required spraying per unit area (lt/ha), reducing waste and improving efficiency.

Download our Catalog

Rate Controller

Sustaining required application rate (lt/ha) at all tractor speeds by using flowrate, pressure and speed sensors.

Large Display

20x4 character screen for user friendly navigation.


Job Registration

10 jobs can be saved and the same jobs can be recalled.

Automatic Spray Shut-off

Spray stop below minimum set pressure and speed.

Displayed Info

Application Rate, Speed, Pressure, Flow Rate, Sprayed quantity, tank level, area covered, spraying duration, distance covered.

Min-Max Pressure

Set Min-Max operating pressure, system will keep pressure at these intervals during spray job.

Customized Nozzle Spacing

Set customized nozzle spacing parameters to correctly regulate spray job for different nozzle spacing needs.

Efficient row-turn spraying

Prevents pressure loss in the system on restarting spray job at row turns.


Infinite Job Summary

Keeps data of total area covered and total spray amount starting from fist operation.

Data Transfer

SD card for data transfer (Export) / USB connection for software updates.

Standard Package Contents

Nova 100 Computer

Nova 100 Computer

K200T1YP100
GPS

GPS

KYP028
Holder

Vantuzlu Tutucu

KYP029
Speed sensor

Hız Sensörü

KYP031
power cable

Güç Kablosu

SIM014
6mt valve cable

6 MT Valf Kablosu

SIM015
11mt valve cable

11 MT Valf Kablosu

SIM016

K15T1

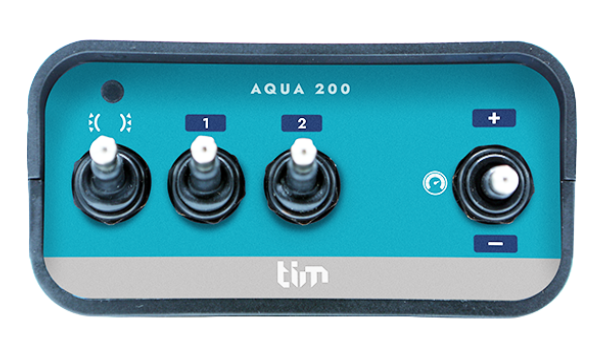

AQUA 200

RATE CONTROLLER COMPUTER.

Easy section control prevents pressure deviation in section opening/closing and safe application is ensured without spraying hose in- cab

Download our Catalog

Spraying Dosage

Control Box allows to increase or decrease the pressure by 10%, which adjusts spraying dosage during operation.

Control Box

It controls 2 section valves Open/Close, main valve Open/Close, pressure regulation.

In-Cab Control

No chemical hoses carried inside the cabin, safe & easy spraying operation control.

Standard Package Contents

aqua 200

2 Way Control Box

SAL 910285
45mt valve cable

4.5m Valve Cable

SIM005

K100T1

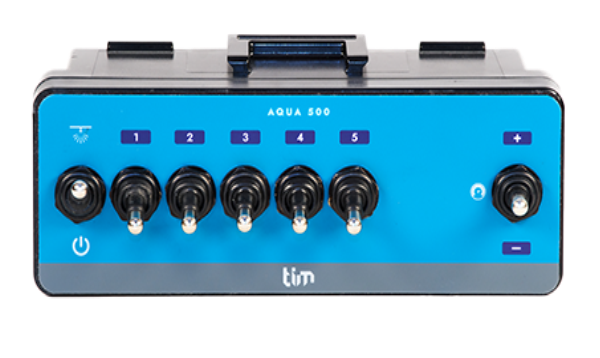

AQUA 500

RATE CONTROLLER COMPUTER.

Easy section control prevents pressure deviation in section opening/closing and safe application is ensured without spraying hose in- cab.

Download our Catalog

Spraying Dosage

Control Box allows to increase or decrease the pressure by 10%, which adjusts spraying dosage during operation.

Control Box

It controls 5 section valves Open/Close, main valve Open/Close, pressure regulation.

In-Cab Control

No chemical hoses carried inside the cabin, safe & easy spraying operation control.

Standard Package Contents

Aqua 500

5 Way Control Box

SAL 910523
45amt valve cable

4.5m Valve Cable

SIM006
Triple Suction Cup Mount

Triple Suction Cup Mount

KYP029

K101T8

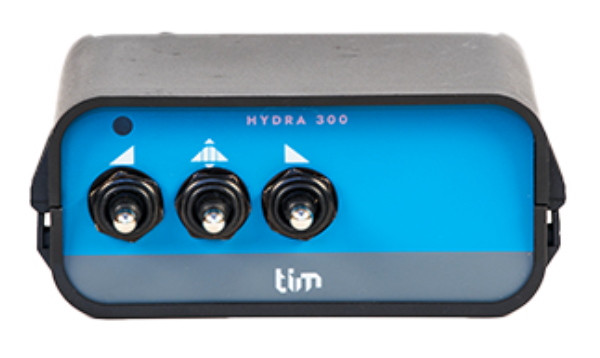

HYDRA 300

Hydraulic Controller Computer.

The hydraulic control box typically controls the flow and pressure of hydraulic fluid from the sprayer to the various hydraulic cylinders and motors, thereby adjusting the boom arm's level, direction, and angle .

Download our Catalog

Hydraulic Boom Movements

The hydraulic valves used in the system allow you to control the boom movements.

3 Way

Height, and 2 boom movement.


Standard Package Contents

Hydra 300

3 Way Control Box

SAL 911331
11amt valve cable

11m Valve Cable

SIM001

K101T9

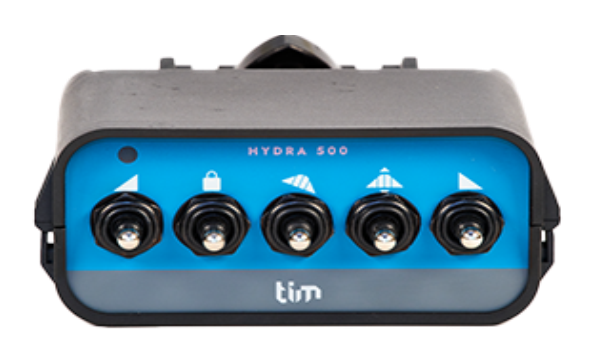

HYDRA 500

Hydraulic Controller Computer.

The hydraulic control box typically controls the flow and pressure of hydraulic fluid from the sprayer to the various hydraulic cylinders and motors, thereby adjusting the boom arm's level, direction, and angle.

Download our Catalog

Hydraulic Boom Movements

The hydraulic valves used in the system allow you to control the boom movements.

5 Way

Leveling, Height, Lock and 2 boom movement

Standard Package Contents

Hydra 50

5 Way Control Box

SAL 911531
11amt valve cable

11m Valve Cable

SIM001

K101T2

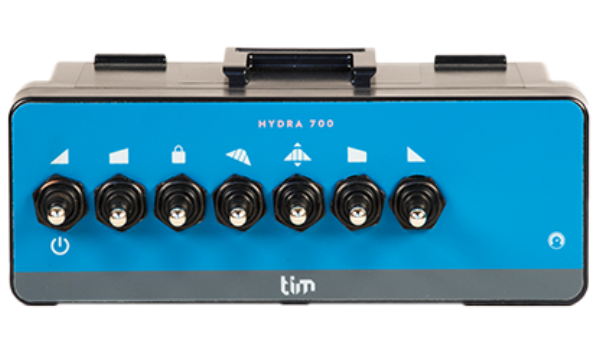

HYDRA 700

Hydraulic Controller Computer.

The hydraulic control box typically controls the flow and pressure of hydraulic fluid from the sprayer to the various hydraulic cylinders and motors, thereby adjusting the boom arm's level, direction, and angle.

Download our Catalog

Hydraulic Boom Movements

The hydraulic valves used in the system allow you to control the boom movements.

7 Way

Leveling, Height, Lock and 4 boom movement.

Standard Package Contents

Hydra 700

7 Way Control Box

SAL 911736
6amt valve cable

6m Valve Cable

SIM004
Triple Suction Cup Mount

Triple Suction Cup Mount

KYP029
