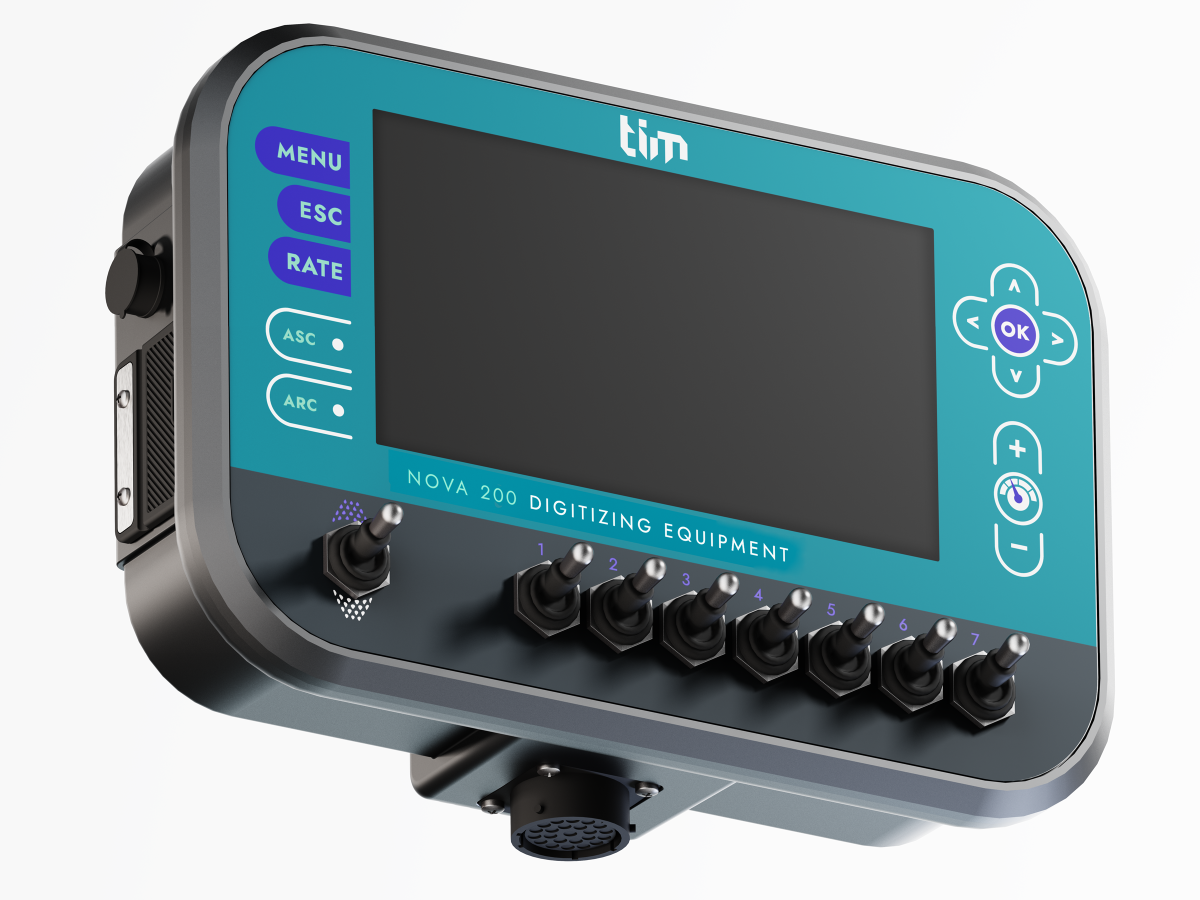

Precision Farming
Nova 200
Auto Section Control + GNSS
Nova 200 is the full precision package — RTK-grade GNSS positioning, automatic section control (no double spraying), field boundary recording and A-B line guidance. The color display replaces three separate devices: rate controller, GPS guidance, and section control.
Overview
Nova 200 is a GPS spraying computer with automatic section control (ASC) for the field sprayer. It replaces three devices in the cab: the rate controller, the GNSS guidance display and the section switch box. Using the Cross 200 or Cross 300 antenna, it draws the field on a colour screen, switches 7 boom sections on and off automatically on overlaps and headlands, holds the rate constant and records the field boundary, which cuts chemical use by 15 to 30 percent on irregular fields.
Key features
Key features
Auto Section Control (ASC)
Automatically turns boom sections on/off based on field map and GPS position — eliminates overlaps and skips, even on irregular fields.
Auto Rate Control (ARC)
Keeps the target rate constant regardless of speed changes — adjusts flow and pressure in real time.
Field Boundary Recording
Record exact field perimeter with GNSS — Nova 200 stops spray outside boundaries automatically.

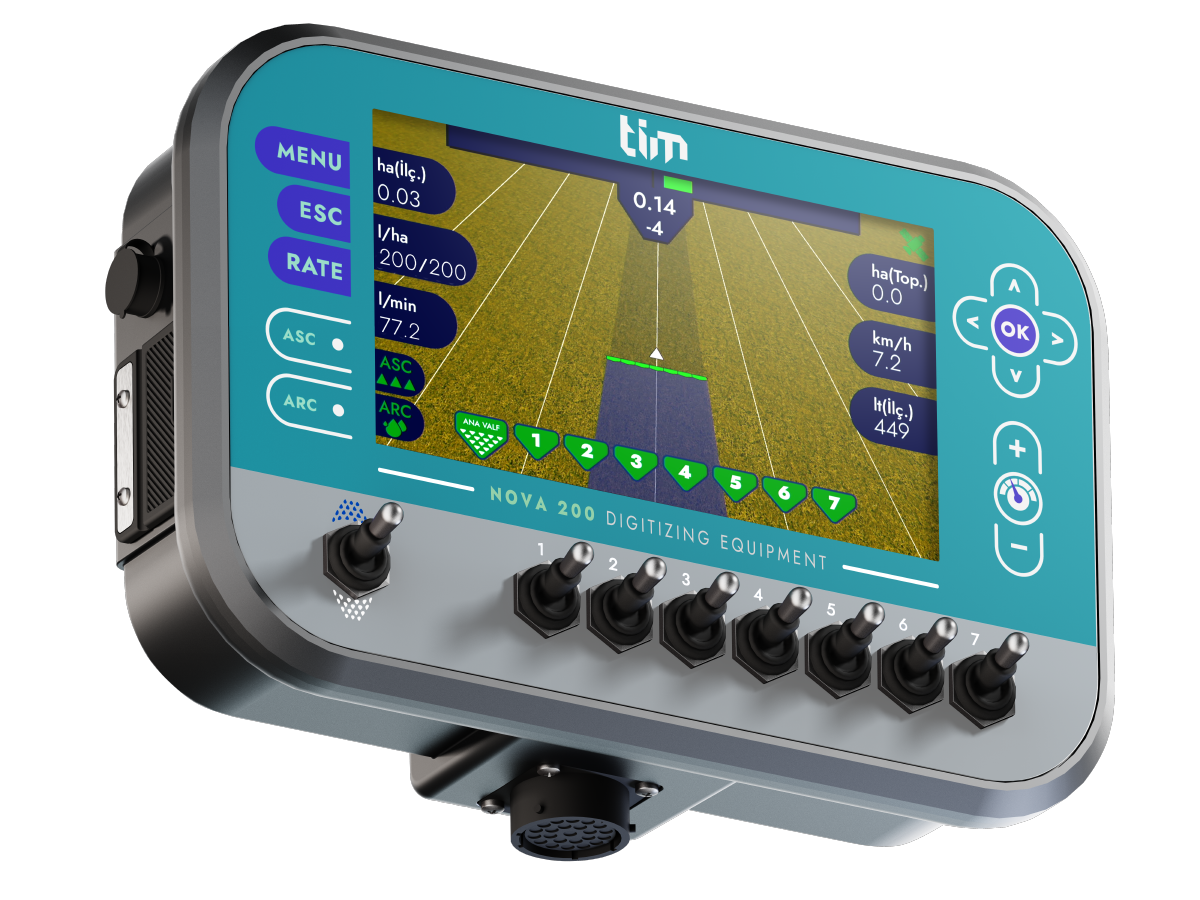

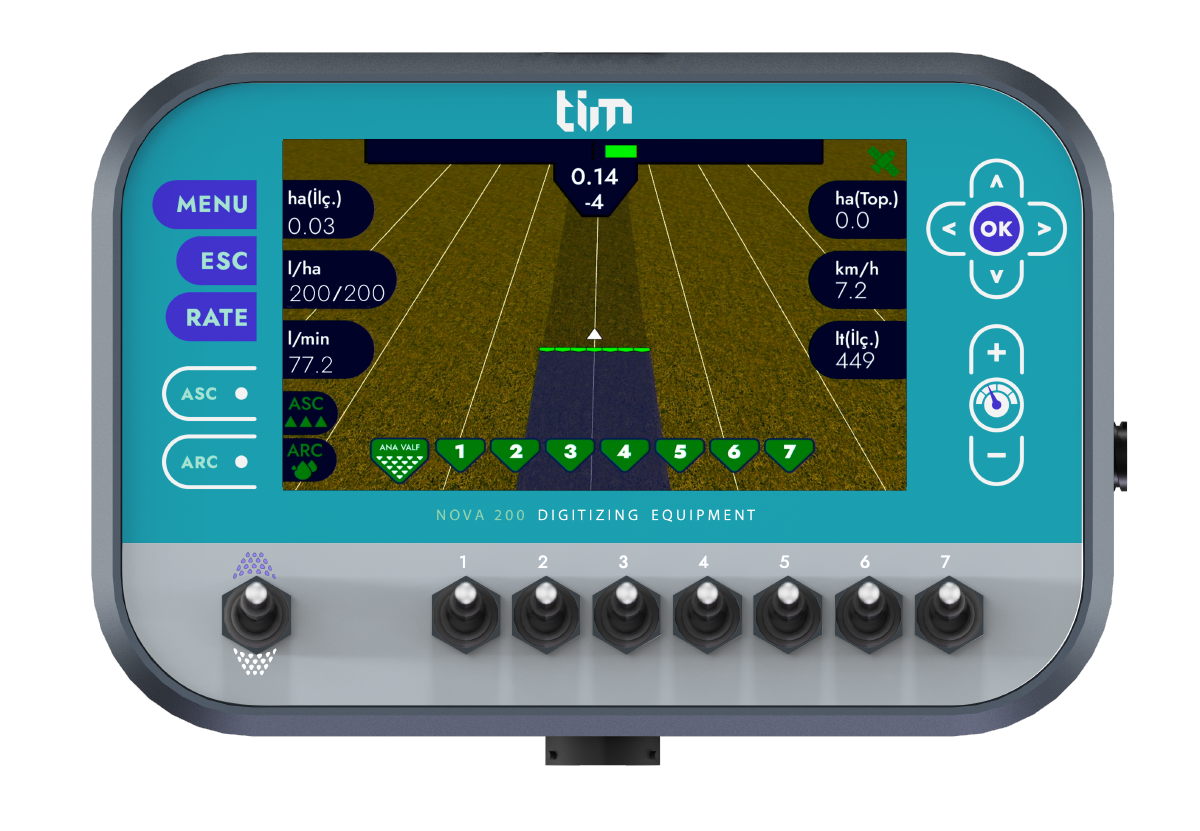

A–B Straight Line Guidance
Mark two reference points; Nova 200 generates perfectly parallel guidance lines across the field.
Shift Line
Move guidance lines left or right on the fly — no need to redefine A-B for implement changes or missed passes.
Pause Point
Stop spraying and resume later from the exact GPS location. No overlaps. No missed areas.
Equipment & Tractor Database
Save multiple sprayer/tractor profiles with boom width, sections, calibration — switch machines instantly.
Auto Save
Every action is stored in real time. Power loss, exits, pauses — your data is never lost.

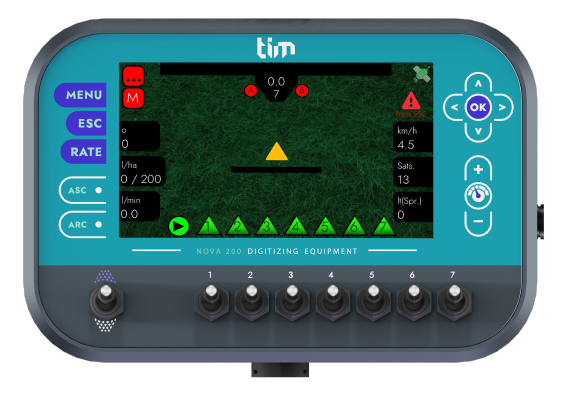

Color Display
Replaces three separate devices: rate controller, GPS guidance, and section control.
Specifications
Specifications
| Display | Color Display |
| Sections | 7 |
| Gnss | Cross 200 Smart GNSS · Cross 300 Smart Antenna (RTK) |
| Guidance | A–B line · Shift line · Pause point |
| Valve Kit | 20 BAR 7W Wolf Flowmeter |
| Data Transfer | USB + TIM APP |
| Voltage | 12V DC |
| Mounting | Cabin |
What's in the box
Package contents & accessories
Everything in the standard package, plus the cables, mounts and kits you can configure for your setup.
Standard package
TNOV200.01Nova 200 Computer
TNOV200.01
2m Power Cable
SIM014Required products
Select with your order — sized to your machine.
Nova 200 4.5 + 1.5m Valve Cable
SIM100

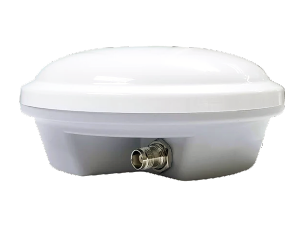

Cross 200 Smart GNSS
KYP036
Smart GNSS Harness
KYP054Optional accessories
Extend your setup as your operation grows.
10.5 + 1.5m Valve Cable
SIM101
Triple Suction Cup Mount
KYP029
Speed Sensor with 2m Cable
KYP030
GNSS 14 Pin Cable
KYP055
Cross 300 Smart Antenna
KYP067
Level Sensor 0.4 Bar with 2m Cable
KYP021
Pressure Sensor 25 Bar - G 1/4
KYP022
Screw Mount
KYP037Required kits
Needed for installation — choose the kit that matches your sprayer.
20 Bar 7W Wolf Flowmeter Electrovalve Kit
20 Bar Main Control Valve
TA 871T502
Proportional Valve
TA 863T024S
Line Filter
TA 32621M3
Wolf Flow Meter
TA 4626415
5W Section Valve
TA 863T0150
2W Section Valve
TA 863T0120Fittings & Manometer
Hose Connector 13 mm
TA 1091313x7
Gasket
TA G11058Vx7
Elbow Fitting
TA 1190425x1
Fitting Set
TA 010004x1
Manometer
TA 911025x1Optionals
200 l/min Main Control Valve
TA 864050250
Orion Flow Meter
TA 46211A4A5B5
Hose Connector 16 mm
TA 1091316Product codes are shown for easy ordering. Your dealer will help you pick the right cable lengths and valve kits for your machine.
Watch in action
Nova 200 — Watch in action
Field-tested demonstrations and step-by-step product walkthroughs.
Features
Auto Section Control Feature
Automatic Rate Control
Settings
Rate Control Settings
Section Control Settings
Frequently asked questions
Nova 200 — Frequently asked questions
What is automatic section control and how much chemical does it save?
Automatic section control closes each boom section the moment it enters an area that is already sprayed or lies outside the field boundary, and opens it again on new ground. Field measurements on irregular fields show 15 to 30 percent less chemical compared with manual switching, plus no missed strips.
Can I retrofit Nova 200 to my existing field sprayer?
Yes. Nova 200 is designed as a retrofit kit: the computer or box goes in the cab, the 20 BAR 7W Wolf electro valve kit is fitted to the sprayer plumbing and the valve cable connects the two. Any brand of field sprayer with a standard valve block can be converted, usually in one working day by your dealer.
Do I need RTK for Nova 200?
Not necessarily. With the standard Cross 200 antenna Nova 200 works at sub-meter accuracy, which is enough for section control on most booms. For centimetre-level guidance, narrow rows or automatic steering readiness, choose the Cross 300 Smart Antenna, which is RTK ready with a cellular correction service or base station.
How much does Nova 200 cost and how do I buy it?
The price depends on the valve kit, cable lengths and options (GNSS antenna, sensors) your machine needs, so we quote per configuration. Use the "Request a quote" button on this page or write to us on WhatsApp; a Tim dealer in your country will reply with a complete kit price and delivery time.
What support and warranty come with Nova 200?
Every Tim product ships with a 2-year warranty, a printed quick guide and access to the Nova Support wizard in the Field Hub. Installation and operator training are handled by the local dealer; firmware updates are free and loaded via USB.
