Rate Control
Nova 100
Rate Control Computer

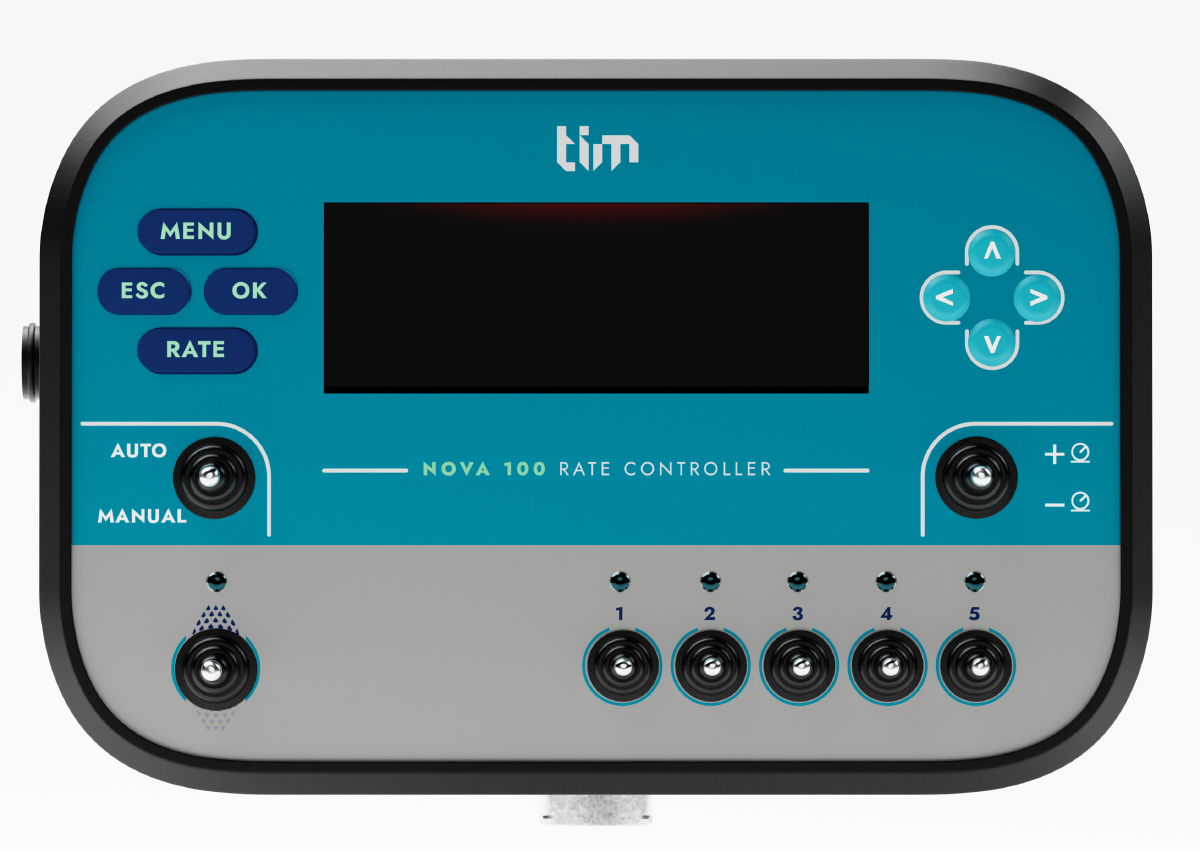

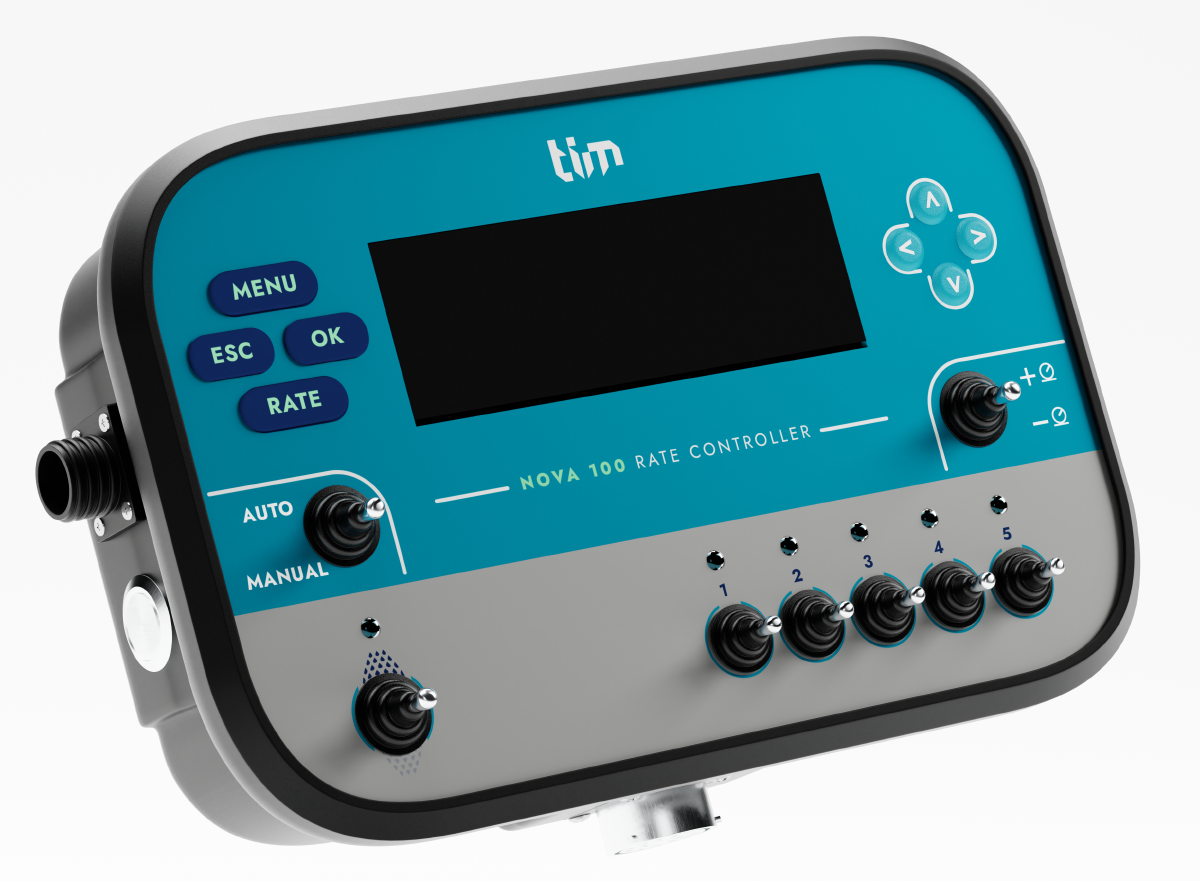

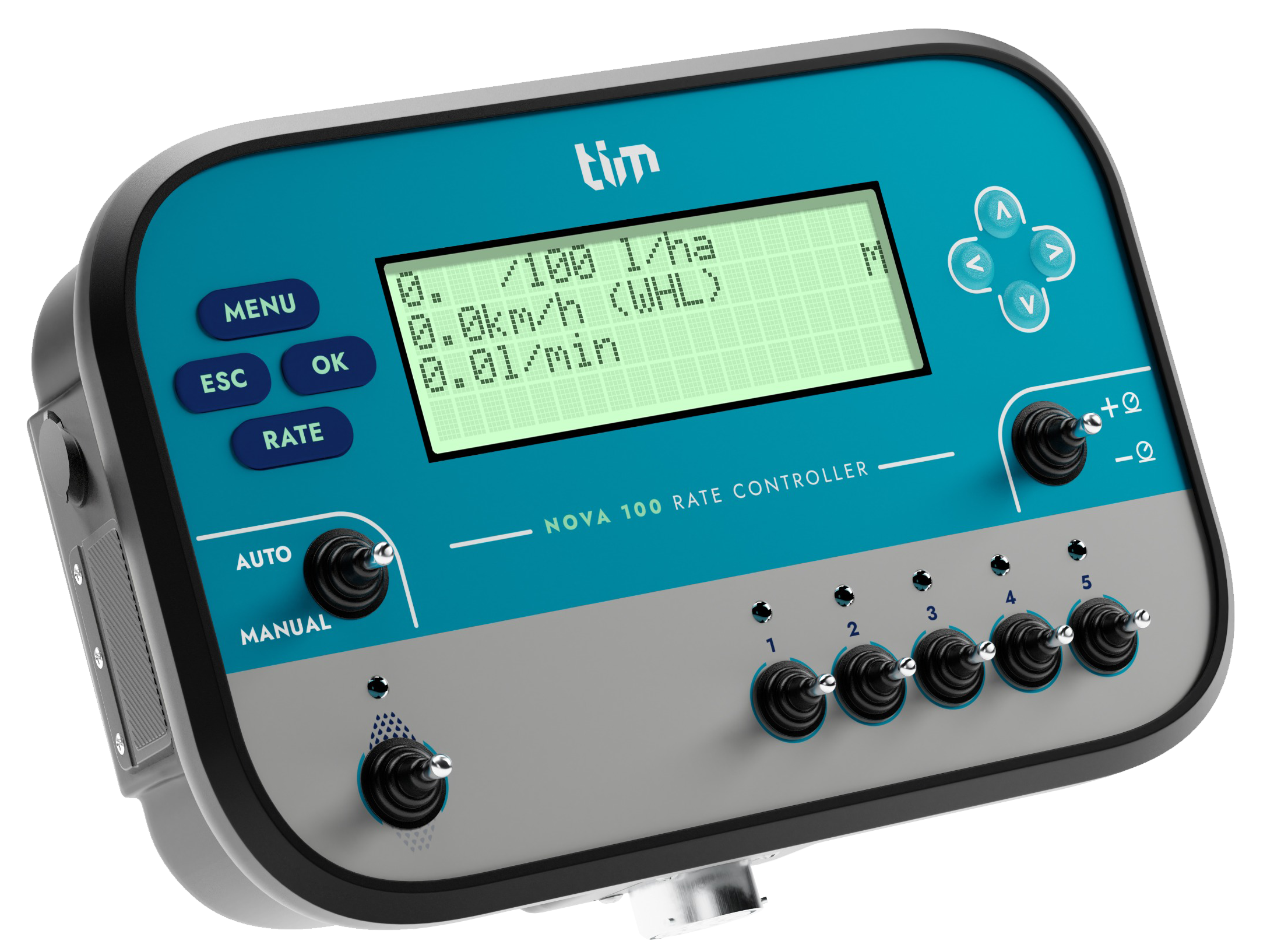

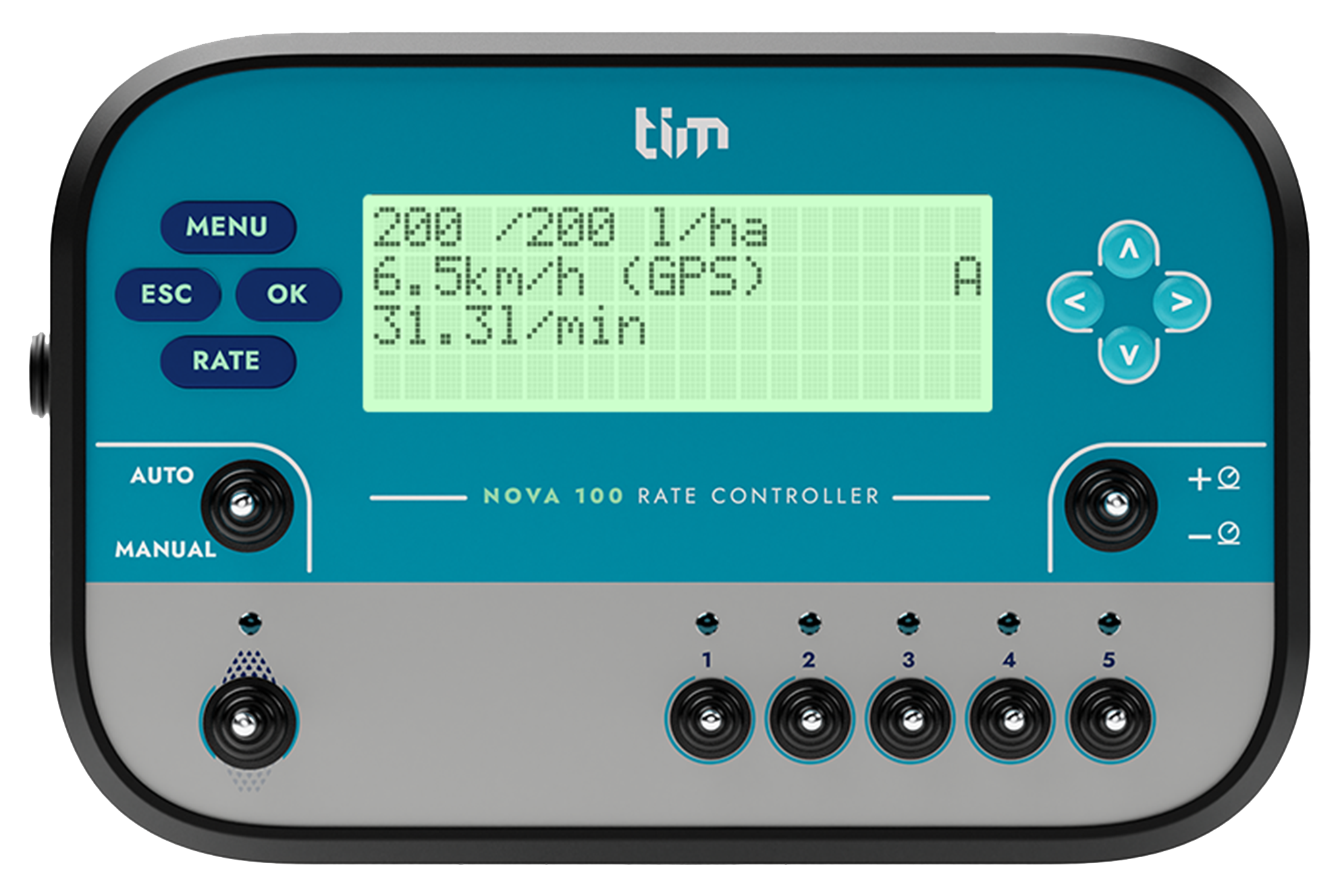

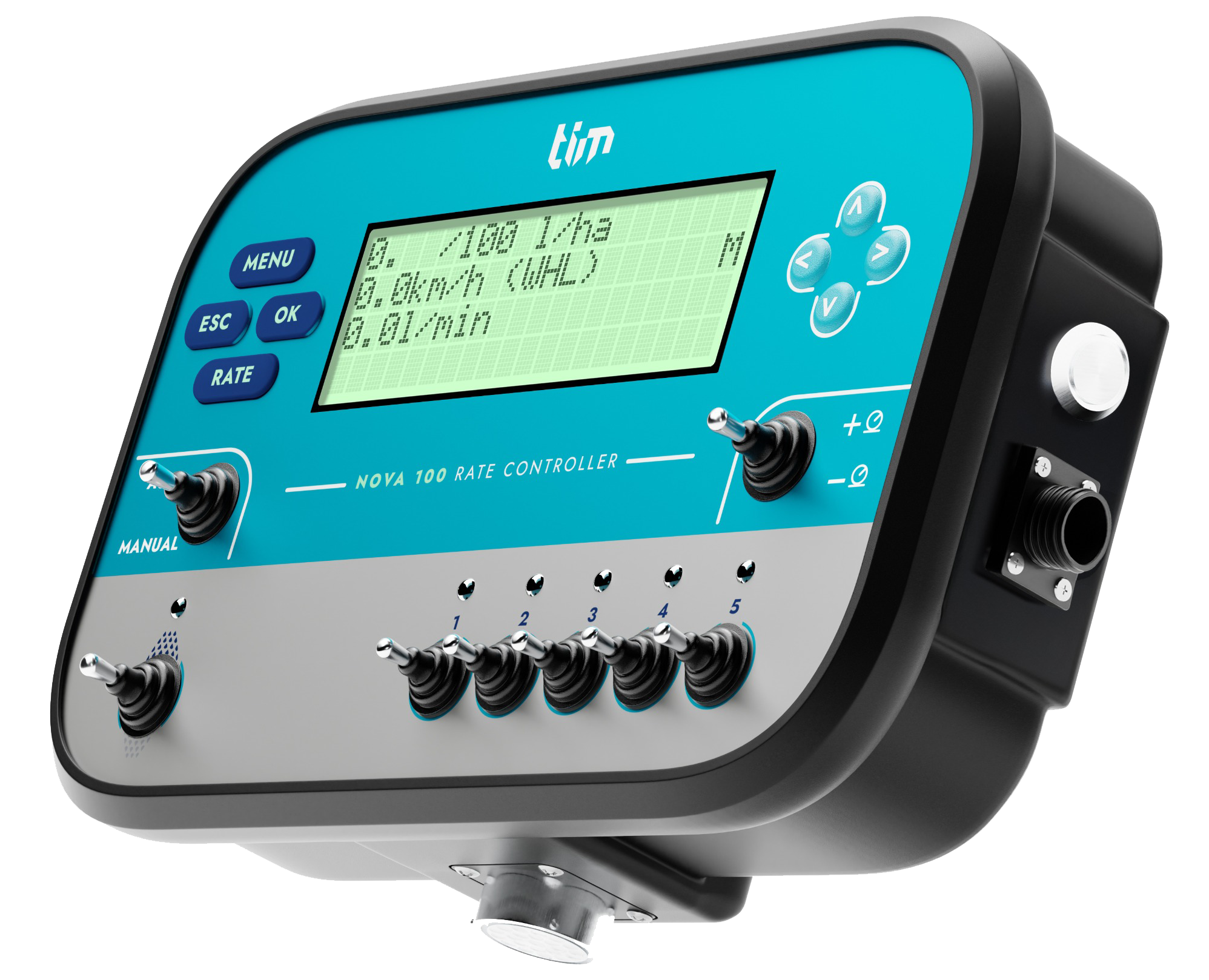

The Nova 100 is our entry-point precision controller — designed for farms that want measurable chemical savings without unnecessary complexity. It handles 5 boom sections, supports manual or automatic rate control, and runs on any 12V tractor cabin.
Overview
Nova 100 is a sprayer computer, also called a rate controller or spraying dosage computer, for the field sprayer. It reads flow, pressure and speed sensors and holds the litres-per-hectare rate you set at every tractor speed, so the operator drives and the computer doses. It is the entry point to precision spraying: automatic rate control, 5 section switches and job records, without GNSS or a colour screen.
Key features
Key features
Rate Controller
Sustains required application rate (lt/ha) at all tractor speeds using flowrate, pressure and speed sensors.
Large LCD Display
20 × 4 character screen for user-friendly navigation.
Automatic Spray Shut-off
Spray automatically stops below minimum set pressure and speed.
Job Registration
Save and recall up to 10 jobs with one tap.
Min-Max Pressure
Set operating range — the system maintains pressure within those bounds.
Customized Nozzle Spacing
Configure nozzle spacing parameters to match your boom setup.
Efficient Row-Turn Spraying
Prevents pressure loss when restarting spray at row turns.
Data Transfer
SD card for data export · USB connection for software updates.
Specifications
Specifications
| Display | 20 × 4 LCD |
| Sections | 5 |
| Jobs Stored | 10 |
| Sensors | Flow · Pressure · Speed |
| Data Transfer | SD card + USB |
| Gnss | Cross 100 Compact GNSS (KYP044) |
| Valve Kit | 20 BAR 5W Wolf Flowmeter |
| Voltage | 12V DC |
| Mounting | Cabin |
What's in the box
Package contents & accessories
Everything in the standard package, plus the cables, mounts and kits you can configure for your setup.
Standard package
TNOV100.01Nova 100 Computer
TNOV100.01
2m Power Cable
SIM014Required products
Select with your order — sized to your machine.
Cross 100 Compact GNSS
KYP044
Nova 100 4.5 + 1.5m Valve Cable
SIM015Optional accessories
Extend your setup as your operation grows.
10.5 + 1.5m Valve Cable
SIM016
Triple Suction Cup Mount
KYP029
Screw Mount
KYP037
Speed Sensor with 2m Cable
KYP030
Level Sensor 0.4 Bar with 2m Cable
KYP021

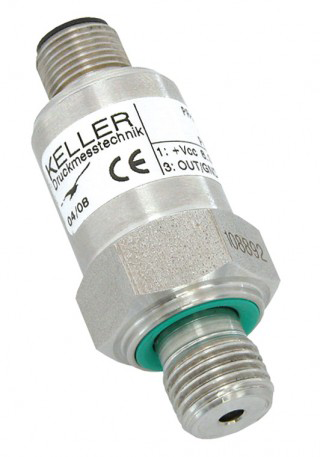

Pressure Sensor 25 Bar - G 1/4
KYP022Required kits
Needed for installation — choose the kit that matches your sprayer.

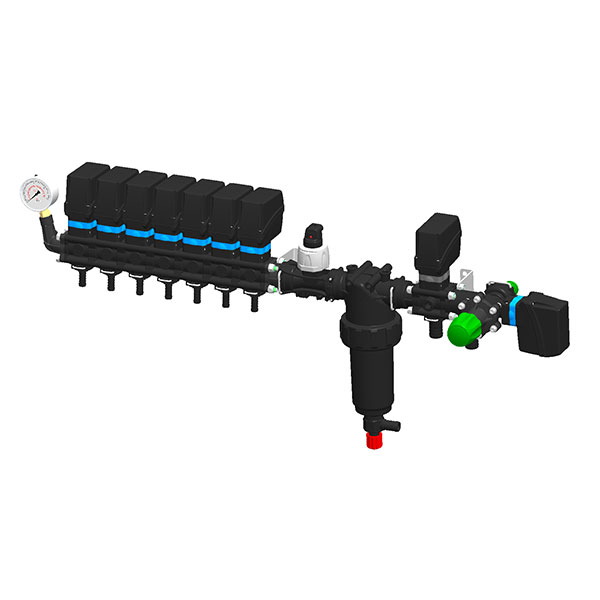

20 Bar 5W Wolf Flowmeter Electrovalve Kit
20 Bar Main Control Valve
TA 871T502
Proportional Valve
TA 863T024S
Line Filter
TA 32621M3
Wolf Flow Meter
TA 4626415
5W Section Valve
TA 863T0150Fittings & Manometer
Hose Connector 13 mm
TA 1091313x5
Gasket
TA G11058Vx5
Elbow Fitting
TA 1190425x1
Fitting Set
TA 010004x1
Manometer
TA 911025x1Optionals
200 l/min Main Control Valve
TA 864050250
Orion Flow Meter
TA 46211A4A5B5
Hose Connector 16 mm
TA 1091316Product codes are shown for easy ordering. Your dealer will help you pick the right cable lengths and valve kits for your machine.
Watch in action
Nova 100 — Watch in action
Field-tested demonstrations and step-by-step product walkthroughs.
Features
Rate Control Feature
Instant Menu
Advanced Menu
Job Menu
Alarms & Alerts
High Pressure Alarm
Low Pressure Alarm
No Flow Alarm
Speed Up Alarm
Reduce Speed Alarm
Minimum Speed Alarm
No Speed Alarm
Minimum Tank Level Alarm
Showcase
Nova 100 Campaign 1
Nova 100 Campaign 2
Nova 100 Campaign 3
Frequently asked questions
Nova 100 — Frequently asked questions
What does a sprayer rate controller do?
A rate controller keeps the application rate (l/ha) constant. When the tractor slows down or speeds up, Nova 100 adjusts the proportional valve so the same amount of chemical lands on every hectare. It also stops spraying below the minimum pressure, records up to 10 jobs and shows tank volume and covered area on the 20 × 4 display.
Can I retrofit Nova 100 to my existing field sprayer?
Yes. Nova 100 is designed as a retrofit kit: the computer or box goes in the cab, the 20 BAR 5W Wolf electro valve kit is fitted to the sprayer plumbing and the valve cable connects the two. Any brand of field sprayer with a standard valve block can be converted, usually in one working day by your dealer.
Does Nova 100 need GPS?
No. Speed can come from a wheel or radar sensor, so Nova 100 works with no satellite signal at all. If you want speed from GNSS or covered-area counting without a wheel sensor, add the compact Cross 100 antenna (order code KYP044).
How much does Nova 100 cost and how do I buy it?
The price depends on the valve kit, cable lengths and options (GNSS antenna, sensors) your machine needs, so we quote per configuration. Use the "Request a quote" button on this page or write to us on WhatsApp; a Tim dealer in your country will reply with a complete kit price and delivery time.
What support and warranty come with Nova 100?
Every Tim product ships with a 2-year warranty, a printed quick guide and access to the Nova Support wizard in the Field Hub. Installation and operator training are handled by the local dealer; firmware updates are free and loaded via USB.
